PINHOLE | ECLIPSE PRO SERIES

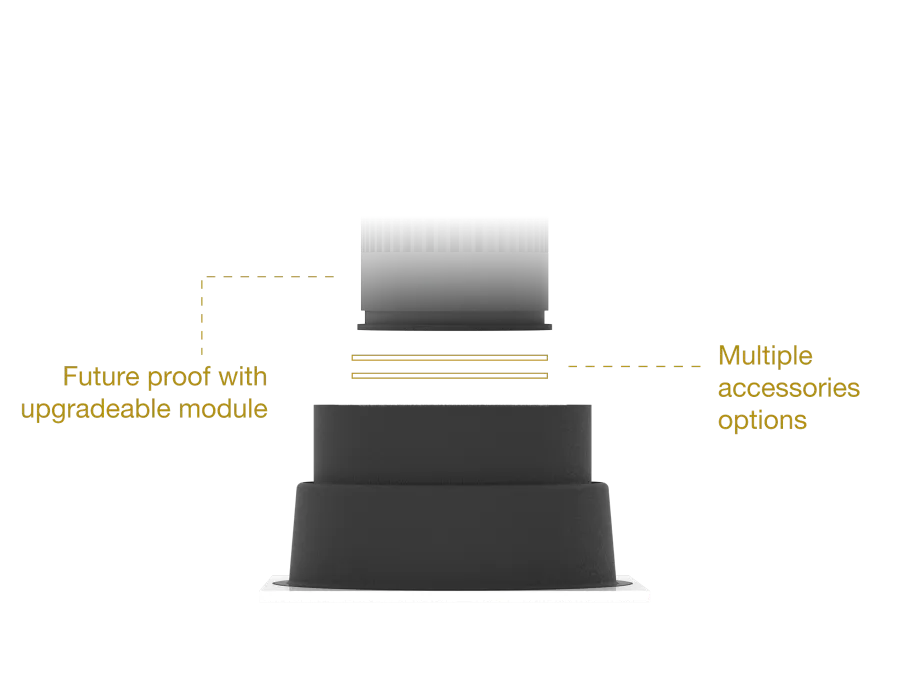

A series of premium pinhole downlights designed with a “dark silent ring” for optimum glare control. Incorporating ELR’s signature modular concept design, LED modules are fully interchangeable with various choices to provide optimal illumination for all kinds of spaces.

Module Colour Temperature Variation

PAProART
98ProART98
ComfySHIFTComfySHIFT
WDWarm Dim
tuneWHITEtuneWHITE
FlexiKflexiK
RGBWRGBW

Beam Angle

10°10°
20°20°
35°35°
60°60°

Fixture Features

IP65IP65
Ceilling SafeCeilling Safe

Driver Dimming Variation

NDND
PHPH
ANAN
DADA
Eclipse 3 Pro

Eclipse 3 PRO

Fix

Fix

Round Trim

Size: 83mm
Luminous Flux: 223 lm – 1982 lm
LED Power: 4.7 W – 17 W
Colour Temperature: Single CCT, CS, WD, TW, FK
Ingress Protection: IP40, IP54 (roomside), IP65 (roomside)
IESBIMINSTALLATION GUIDE
Fix

Round Flushmount

Size: 95mm
Luminous Flux: 223 lm – 1982 lm
LED Power: 4.7 W – 17 W
Colour Temperature: Single CCT, CS, WD, TW, FK
Ingress Protection: IP40, IP54 (roomside), IP65 (roomside)
IESBIMINSTALLATION GUIDE
Fix

Square Trim

Size: 83 x 83mm
Luminous Flux: 223 lm – 1982 lm
LED Power: 4.7 W – 17 W
Colour Temperature: Single CCT, CS, WD, TW, FK
Ingress Protection: IP40, IP54 (roomside), IP65 (roomside)
IESBIMINSTALLATION GUIDE
Fix

Square Flushmount

Size: 95 x 95mm
Luminous Flux: 223 lm – 1982 lm
LED Power: 4.7 W – 17 W
Colour Temperature: Single CCT, CS, WD, TW, FK
Ingress Protection: IP40, IP54 (roomside), IP65 (roomside)
IESBIMINSTALLATION GUIDE

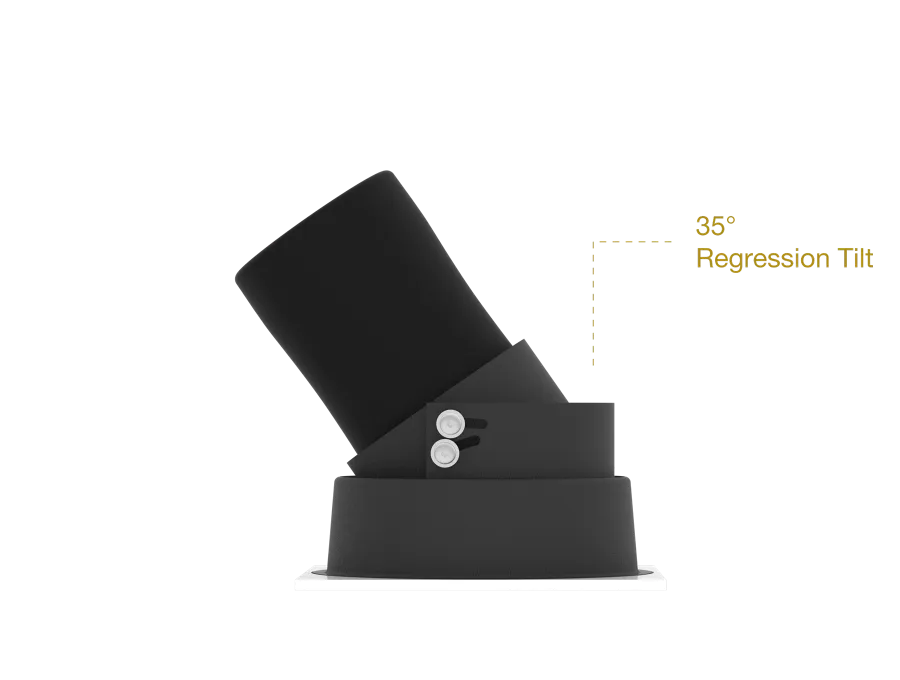

Tilt

Fix

Round Trim

Size: 83mm
Luminous Flux: 223 lm – 1982 lm
LED Power: 4.7 W – 17 W
Colour Temperature: Single CCT, CS, WD, TW, FK
Ingress Protection: IP40, IP54 (roomside), IP65 (roomside)
IESBIMINSTALLATION GUIDE
Fix

Round Flushmount

Size: 95mm
Luminous Flux: 223 lm – 1982 lm
LED Power: 4.7 W – 17 W
Colour Temperature: Single CCT, CS, WD, TW, FK
Ingress Protection: IP40, IP54 (roomside), IP65 (roomside)
IESBIMINSTALLATION GUIDE
Fix

Square Trim

Size: 83 x 83mm
Luminous Flux: 223 lm – 1982 lm
LED Power: 4.7 W – 17 W
Colour Temperature: Single CCT, CS, WD, TW, FK
Ingress Protection: IP40, IP54 (roomside), IP65 (roomside)
IESBIMINSTALLATION GUIDE
Fix

Square Flushmount

Size: 95 x 95mm
Luminous Flux: 223 lm – 1982 lm
LED Power: 4.7 W – 17 W
Colour Temperature: Single CCT, CS, WD, TW, FK
Ingress Protection: IP40, IP54 (roomside), IP65 (roomside)
IESBIMINSTALLATION GUIDE
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K
