FRAMING PROJECTOR | MODI FRAMING PROJECTOR SINGLE POINT SERIES

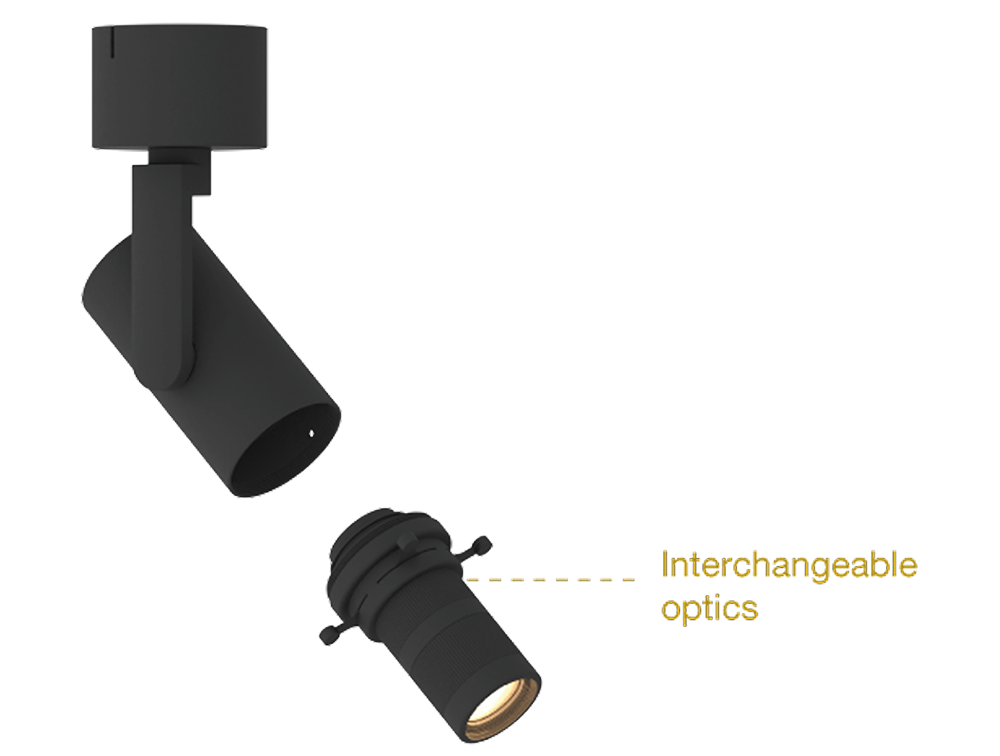

A series of adjustable luminaires with gobo stencil options, adjustable beam and framing patterns mechanism that projects light in desirable patterns, and different shapes and sizes.
Module Colour Temperature Variation
ProART
ProART98
tuneWHITEBeam Angle
20° – 35°
18° – 35°
25° – 40°Fixture Features
Gobo Stencil – Single Colour Image
Gobo Stencil – Dual Colour Image
Gobo Stencil – Full Colour ImageDriver Dimming Variation
ND
PH
AN
DA
DT8
DMX

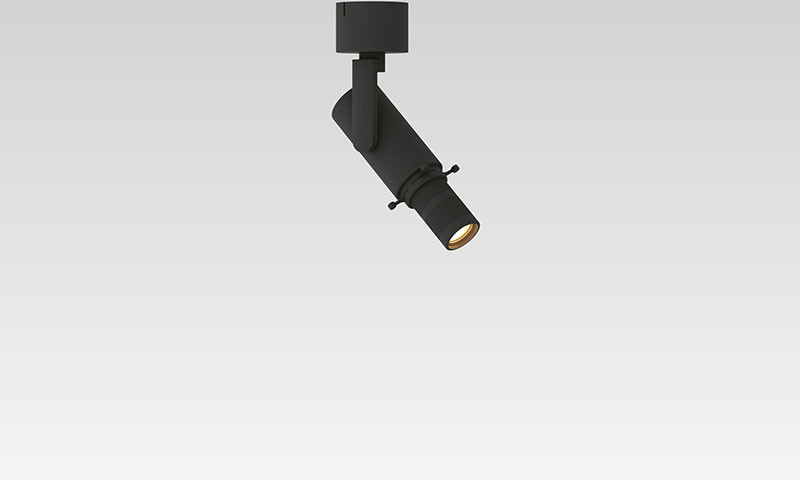

CSBModi Framing Projector 2 Single Point
Surface
Size: 51 mm
Luminous Flux: 299 lm – 417 lm
LED Power: 9W
Colour Temperature: Single CCT, TW
Ingress Protection: IP40

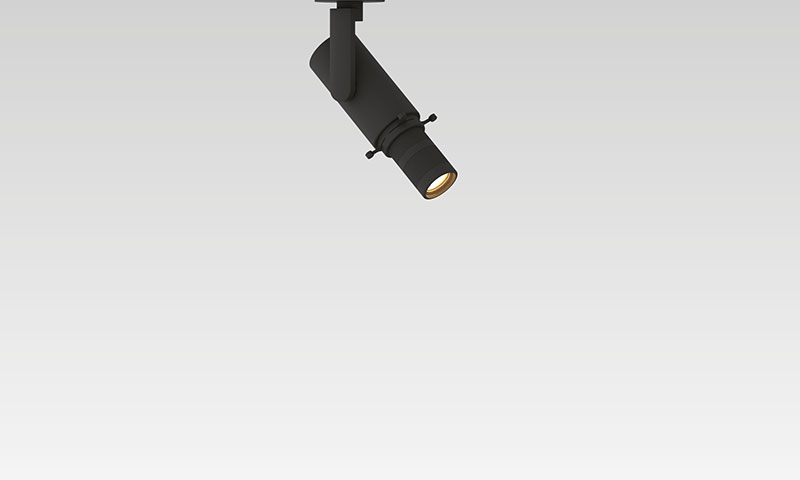

Recessed
Size: 51 mm
Luminous Flux: 299 lm – 417 lm
LED Power: 9W
Colour Temperature: Single CCT, TW
Ingress Protection: IP40
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K
Modi Framing Projector 3 Single Point
Surface
Size: 65 mm
Luminous Flux: 560 lm – 748 lm
LED Power: 18W
Colour Temperature: Single CCT, TW
Ingress Protection: IP40

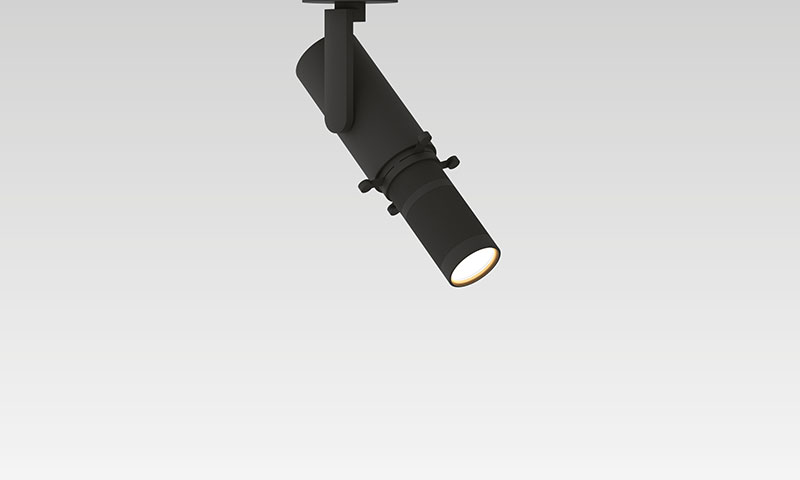

Recessed
Size: 65 mm
Luminous Flux: 560 lm – 748 lm
LED Power: 18W
Colour Temperature: Single CCT, TW
Ingress Protection: IP40
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K

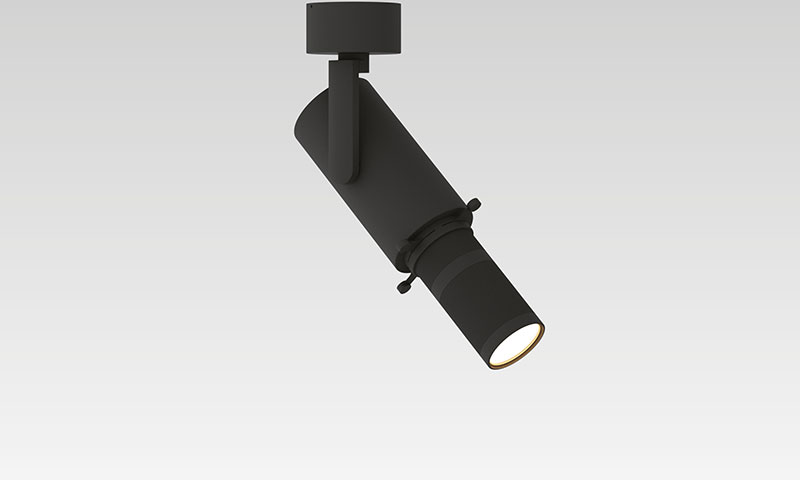

Modi Framing Projector 4 Single Point
Surface
Size: 85 mm
Luminous Flux: 1094 lm – 1295 lm
LED Power: 27W
Colour Temperature: Single CCT, TW
Ingress Protection: IP40
Recessed
Size: 85 mm
Luminous Flux: 1094 lm – 1295 lm
LED Power: 27W
Colour Temperature: Single CCT, TW
Ingress Protection: IP40
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K
